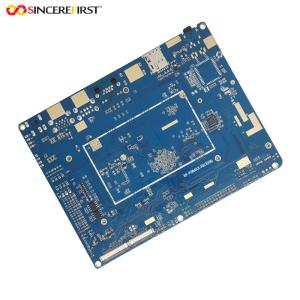

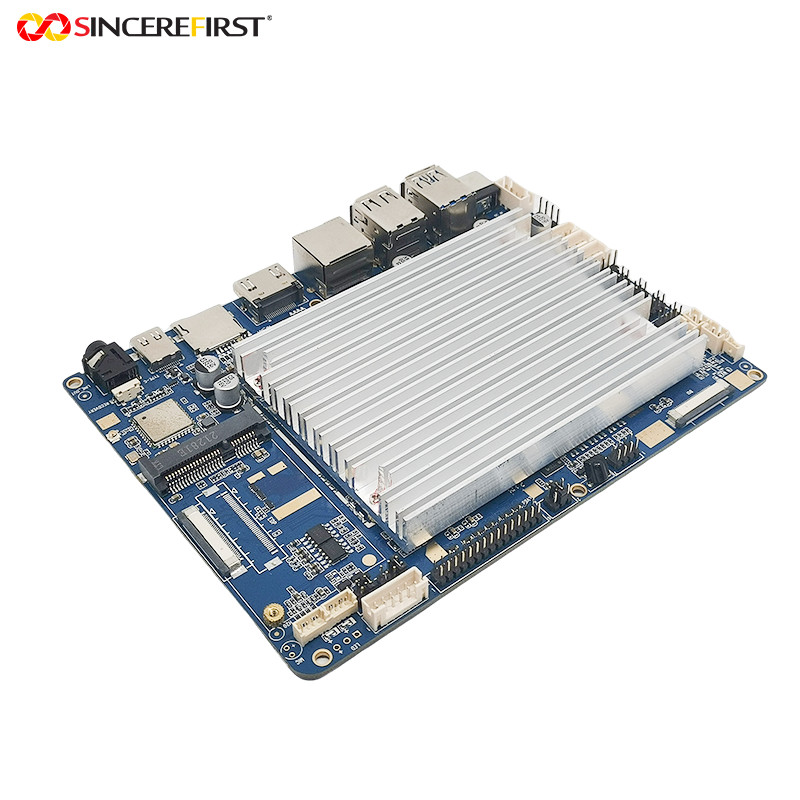

    Rockchip RK3399 Development Board Mainboard With EDP/LVDS/MIPI Display

    Ask Lasest Price
    Brand Name : SINCERE FIRST
    Model Number : SF-K9MAX-RK3399
    Certification : Rohs, Reach, ISO
    Price : Negotiable
    Payment Terms : L/C, Western Union, T/T, MoneyGram, Paypal and Others
    Supply Ability : 350000 pcs / month
    Delivery Time : 7 - 15 Work Days
    • Product Details
    • Company Profile

    Rockchip RK3399 Development Board Mainboard With EDP/LVDS/MIPI Display

    Rockchip RK3399 Development Board Mainboard With EDP/LVDS/MIPI Display

    Function:

    1. Hexa Core 64bts Processor
    2. Up to 1.8GHz
    3. High performance GPU
    4. 4K HD Display
    5. Support Face-recognition and touch screen
    6. Support AFBC

    Hardware:

    1. Support HDMI_OUT/LVDS/EDP/MIPI Display
    2. Built-in RTC_IN,Real-time display
    3. Support MIPI Camera
    4. Rich Interfaces(RS485/RS232/GPIO)
    5. Rich USB USB2.0/USB3.0/Type_C_OTG)
    6. Support MIC/LINE-OUT
    7. Strong Network communication(1000Mbps,
    8. WIFI+Bluetooth,4G Module)
    9. Support IR, SIM card,TF card

    Technical Parameters:

    ProcessorDual-core Cortex-A72 up to 1.8GHz +Quad-core Cortex-A53 up to 1.4GHz
    GPUARM Mali-T860 MP4
    Support OpenGL ES1.1/2.0/3.0/3.1,OpenVG1.1, OpenCL,DX11
    Support AFBC
    VideoSupport 4K VP9 and 4K 10bits H265/H264 video decoding, up to 60fps 1080P
    decoding, (MVC, MPEG-1/2/4,VP8)
    1080P video encoding,Support H.264,VP8 format
    Video Post-processor: deinterlacing, denoising, edge/detail/color optimization
    Power Supply12V/5A
    Working Tem-20℃~60℃Fan/Heat Sink Optional
    Artwork8-Layer Design

    Applications:

    Security

    Surveillance

    Alert

    loT
