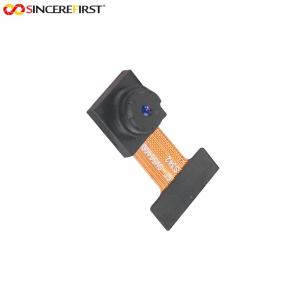

5 Megapixel OV5640 DVP Interface Raspberry Pi ESP32 Camera Module

Product Categories

Guangzhou Sincere Information Technology Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

5 Megapixel OV5640 DVP Interface Raspberry Pi ESP32 Camera Module

Ask Lasest Price
Brand Name :	SINCERE FIRST
Model Number :	SF-OV5640BY
Certification :	Rohs, Reach, ISO
Price :	Negotiable
Payment Terms :	L/C, Western Union, T/T, MoneyGram, Paypal and Others
Supply Ability :	350000 pcs / month
Delivery Time :	7 - 15 Work Days

Add to Cart

Product Details
Company Profile

5 Megapixel OV5640 DVP Interface Raspberry Pi ESP32 Camera Module

Product Description:

This camera module is based on OmniVision OV5640 CMOS Image Sensor, the cost-effective CMOS imaging solution that enables high-speed image capture capabilities, and includes variable functions, such as gain, frame rate, and exposure while maintaining low power consumption. The sensor has a 1/4 Inch optical format, which combines with the pixel size of 1.4um(H) x 1.4um(V), resulting in the 5.0 Megapixel support at 30 fps 2592H x 1944V for maximum video performance.

Features:

1. High sensitivity, low voltage, suitable for embedded applications.

2. Standard SCCB interface, compatible with I2C interface.

3. Supports automatic exposure control, automatic reinforcement control, automatic white balance, automatic elimination of light strips, automatic black level calibration.

4. Supports image zoom, swivel and window settings.

5. Support image compression, you can output JPEG image data.

6. comes with embedded micro processor.

Technical Parameters:

Product Name	OV5640 Camera Module
Image Sensor	1/4’’ OV5640
Pixel Size	1.4um(H) x 1.4um(V)
Interface	24pin DVP
Focus Type	Fixed Focus
View Angle	150°
Shutter Type	Electronic Rolling Shutter
Resolution	5Megapixel 2592H x 1944V
EFL	3.29
TV Distortion	＜1%

Applications:

DVP Camera module is widely used for many applications, such as smartphones, tablets, PC multimedia, embedded system, robotics, drones, medical equipment, artificial intelligence, and more.
