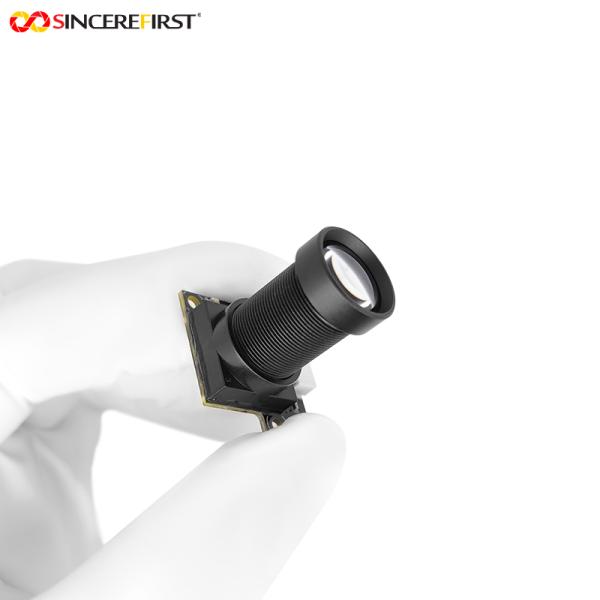

High-Definition Industrial Omnivision OV9713 CMOS Sensor USB2.0
Camera Module
Product Description:
This is high-definition industrial OmniVision OV9713 CMOS sensor
USB2.0 camera module, natively supporting 1MP pixels and 30FPS
smooth output, perfectly meeting the 1280×720P high-definition
imaging requirements. Its 1/4-inch light-sensitive area
innovatively adopts a 2.2μm×2.2μm super-large pixel architecture,
significantly enhancing the low-light receiving capability.
Combined with a 2mm focal length and F2.5 large aperture optical
system, it achieves wide-angle coverage of 130°DFOV and 110°HFOV,
with a focusing range ranging from 60cm to infinity and fixed
focus. Optical distortion is strictly controlled within -88%. The
module is plug-and-play via the USB2.0 interface, fully compatible
with the UVC protocol and Windows/Linux systems. With a micro
package of only 22×19mm, it can be seamlessly embedded in security,
conference and smart home devices. In embedded applications, it
offers both high cost performance and stable transmission
performance, providing reliable image support for machine vision,
mobile platforms and industrial inspection.
Features:
1.High-Definition Smooth Transmission: 720P@30fps uncompressed video transmission, with a stable bitrate
controlled within 250Mbps, supports dual output formats of
MJPEG/YUV, and is compatible with different processing platforms.
2. Plug-And-Play Compatibility: Certified by the USB2.0 UVC protocol, it can run without driver on
Windows/Linux systems. The 22×19mm micro package supports direct
replacement of embedded devices.
3. Industrial-Grade Optical Accuracy: The 130° wide-angle lens is corrected for -88% distortion and has
a continuous focusing capability of 60cm to ∞, covering 90% of the
monitoring scene requirements.
4. Outstanding Low-Light Performance: With a 2.2μm ultra-large pixel design, the light-sensitive area
per pixel is increased. Equipped with a 1/4-inch sensor and an F2.5
large aperture, it achieves 0.1Lux low-light imaging.
Technical Parameters:
| Product Name | Fixed Focus 1MP Camera Module |
Sensor | OV9713 Sensor |
Pixel | 48MP |
Pixel Size | 2.2μm*2.2μm |
Focusing Range | 60cm-∞ |
Module Size | 22mm*19mm |
Lens Size | 1/4inch |
Focus Type | FF |
Interface Type | USB |
Brand Name | SINEREFIRST |
Applications:
1. Aerial Photography Gimbal: 130° ultra-wide-angle coverage +60cm
infinity focus, perfectly suitable for low-altitude shooting from 5
to 50 meters. 3μm large pixels effectively suppress image tearing
caused by propeller vibration.
2. Sorting Robot: 720P@30fps high-definition stream ensures 0.05mm
level part recognition accuracy, USB plug-and-play feature supports
rapid deployment to robotic arm terminals.
3. Vehicle-Mounted Surround-View system: Compact design combined
with a wide-angle lens provides a wide field of vision, covering a
larger space.
Customized Process:
1. You can provide drawings or samples, as well as request
documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat
product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time
to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need
to modify, mass production.
